Elevation statistics for any New York property

Find the elevation of your property: the highest and lowest ground, the mean and the range, in feet, measured over every cell of the parcel from the USGS 3DEP lidar elevation model. A chart shows how much of the land sits at each elevation.

Handy for flood, frost and planting questions, and for knowing how far above sea level a house site really is.

Terrain Stats results: area, minimum, maximum, mean, elevation range and mean slope
Terrain Stats on Mount Marcy. The walkthrough below shows how this was made.

Free to run · pay to download

Free to run, and free to save as a PNG image of the map. This tool has no file export of its own. For the terrain as a file, Download Data exports contours, a GeoTIFF or a 3D mesh with a pass: US$29 for 24 hours, US$99 for 30 days or US$399 for 12 months.

Open Terrain Stats on the map →Pass prices and what’s included

Who uses this

  • Owners and buyers. Know how high the property sits, for flood and frost questions.
  • Growers and vineyard managers. Find the frost-prone low ground and the elevation band of a block.

When to use it

  • You want the highest and lowest points on a property, or the elevation of a house site.
  • You need the elevation range for a flood, frost or planting question.
  • You want the ground elevation, not the height of what is standing on it.

Tools for your job

Terrain Stats is one step in a bigger question. These are the jobs it helps with, and the tools that go with it.

For the job: Plans, CAD, GIS and 3D printing

I need the terrain as a file.

  1. 1.Download Data — Contours, a GeoTIFF elevation model, a georeferenced aerial photo or a 3D mesh for printing.
  2. 2.Contour Lines — Contours previewed on the map before you export them.
  3. 3.Elevate a File — Adds ground elevation to your own GPX, KML, GeoJSON or CSV points.
  4. 4.Add Elevation — A single spot elevation, for a floor level or a tank.
  5. 5.Terrain Stats (this tool) — The highest, lowest and mean ground elevation of an area, and how the land is spread between them.

How to use it

  1. Select a property, draw an area or upload a boundary.
  2. Run. The panel lists the statistics and draws the elevation distribution.

Step by step: Mount Marcy

We summarize the ground elevation across the Mount Marcy summit area.

The Terrain Stats panel with an area over the Mount Marcy summit area
1.Zoom to the area or select a property, then choose Calculate stats.

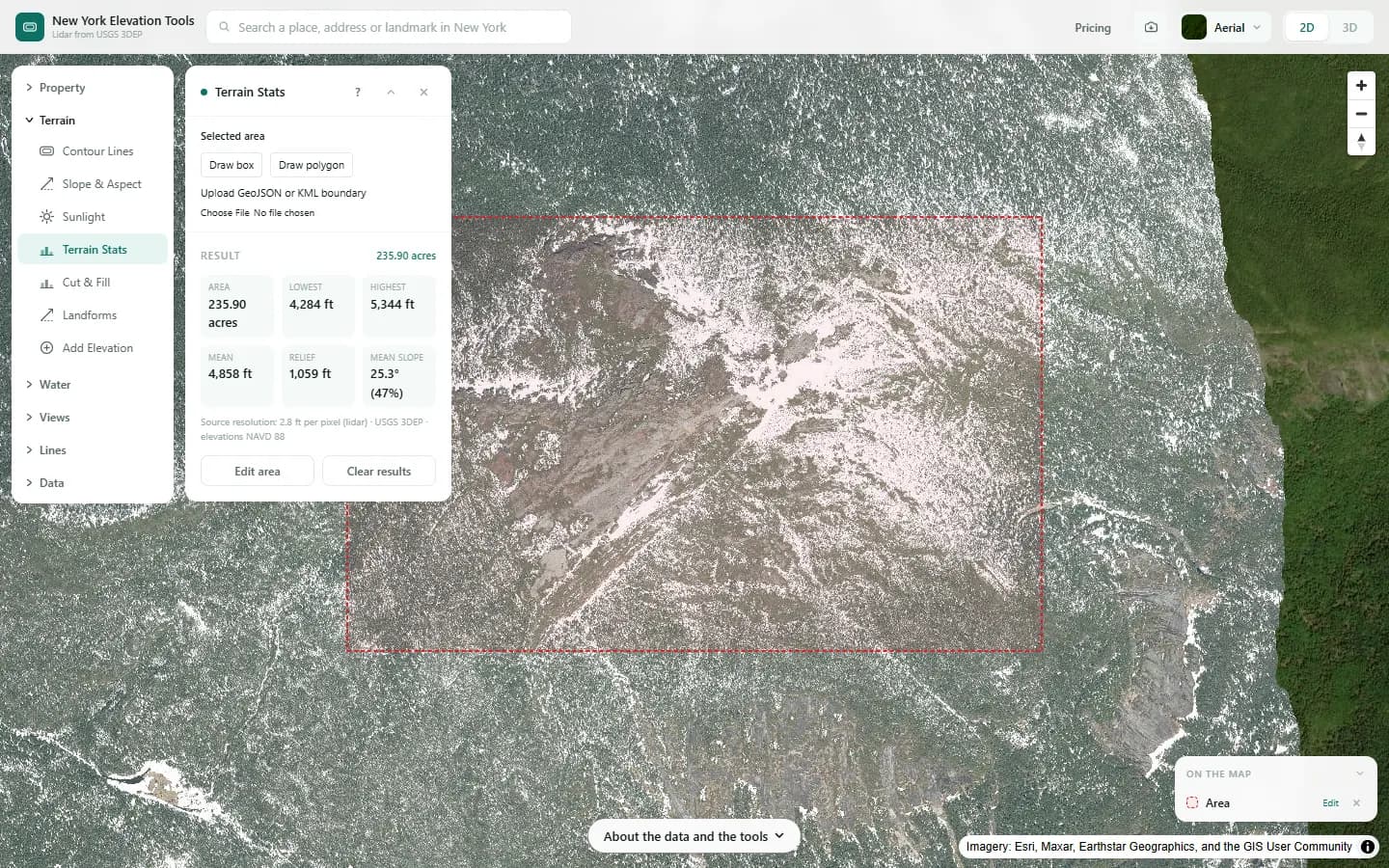

Terrain Stats results: area, minimum, maximum, mean, elevation range and mean slope
2.The panel lists the area, the lowest and highest points, the elevation range, the mean elevation and the mean slope.

What it showed

  • Elevations are in feet above NAVD 88. Tree and roof heights are not measured by this tool.

Screenshots from New York Elevation Tools. Imagery: Esri, Maxar, Earthstar Geographics, and the GIS User Community. Elevation data from USGS 3D Elevation Program. USGS 3DEP data is in the public domain (U.S. Government work).

Try it yourself on Mount Marcy →

How it works

Every cell of the USGS 3DEP bare-earth model inside the area is read, and the statistics are taken over those cells. The distribution chart, called a hypsometric curve, bins the cells by elevation so you can see whether the land is mostly high, mostly low or evenly spread.

Reading the results

Elevations are feet above NAVD 88, which is close to mean sea level.

A long, flat distribution means a steady slope; a tall spike means mostly flat ground at one elevation.

Limits and caveats

  • Areas up to 3.7 miles per side.
  • Where lidar has not been flown, the USGS 3DEP model falls back to its 1/3 arc-second layer, about 33 ft per pixel, and downloads state what share of the area came from it. That coarser model is not fit for site-scale decisions. Lidar coverage and source resolution vary across New York. Check your location against the USGS 3DEP index; no statewide coverage percentage is asserted. The fallback is rare.
  • Bare ground only. Roof and tree heights are not available.

Data and attribution

Results come from the USGS 3D Elevation Program (3DEP) bare-earth elevation model: lidar at 3.3 ft per pixel where it has been flown, and the 1/3 arc-second model, about 33 ft per pixel, elsewhere, with elevations above NAVD 88. This edition uses bare-earth terrain only. Buildings and trees are excluded.

USGS 3DEP elevation and USGS maps are U.S. Government works in the public domain. Credit the USGS 3D Elevation Program. NYS public tax parcels are assessment data provided as is, not surveys. Esri World Imagery follows its own terms and is display-only; downloaded aerial imagery comes from USGS NAIP.

Questions

Is the elevation above sea level?

It is feet above NAVD 88, the national vertical datum, which is close to mean sea level. For design elevations, check against a survey benchmark.
